Video Player Image Multi
Unusual video module that can be used in 3D pixel mapping. The idea is to create a frame made of several images (number of layers) concatenated together. The module processes all the images of a folder.
3D pixel mapping
example of video out
The output image can be sent to a video-to-color-array module and then, to a light-color-array-to-artnet to generate DMX.
It is recommended to use images with the same size.
Settings
video in
Video input flow(s).
video out
Video output flow(s).
process time
Total time used for the calculation of the module.
current frame
Index of the current frame. Can be connected to a LFO module or whatever.
dimmer
Output intensity.
folder
Base folder where are stored images.
number of layers
Number of layers of the concatenated image, or more simply the number of images in the frame out.

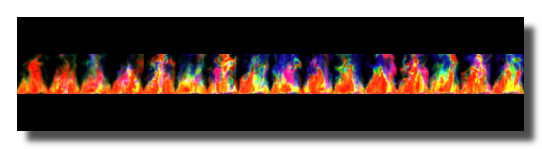

16 layers

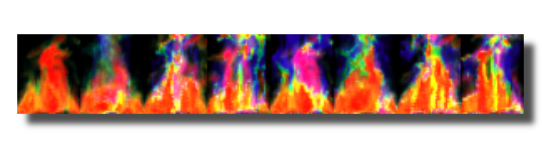

8 layers
number of files
Gets the total number of files in the folder.
number of frames
Gets the number of available frames calculated as number of frames=number of files div number of layers.
width
Width of the first image in the folder.
height
Height of the first image in the folder.
Remember that all images should have the same size.
video preview out
Preview out, displayed as the addition of all layers.
Common Settings
info
show manual
Opens the web browser to display information or help about the selected object, if it exists.
For more details about information/help creation, see create-help-file.
description
Description of the module for internal help purposes only. The description is not displayed in the interface.
ID's
visible only in god mode, see setup-panel-tab-expert.
unique ID
Current private ID for this control used to identify the object.
preset ID
Current private preset ID for this control used for presets.
recreate ID
If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.
repair ID s
Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.
Object Remote Address
absolute
Absolute remote address. see objects-address.
local
Local to the current patch remote address. see objects-address.
user addr
User defined remote address. see objects-address.
