Video to Color Array

Crops a video flow and converts pixels to a color-array.

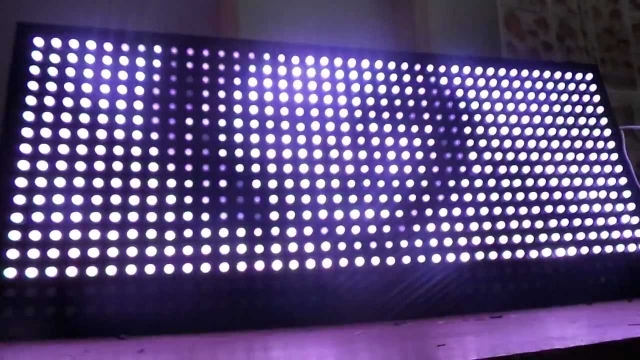

Typically, it can be used in conjunction with light-color-array-to-artnet module to display a video on a led matrix.

The size of the output color array is given by width x height.

A color-array-display module can be used to display the color array.

Settings

on

Activates or deactivates the module.

video in

Video input flow(s).

process time

Total time used for the calculation of the module.

start idx X

Crop start index (in pixel) on X axis.

end idx X

Crop end index (in pixel) on X axis.

start idx Y

Crop start index (in pixel) on Y axis.

end idx Y

Crop end index (in pixel) on Y axis.

scan direction

Determines the way the image is converted:

  • horizontal: line by line,
  • vertical: column by column.

color array

Color array output.

Common Settings

info

show manual

Opens the web browser to display information or help about the selected object, if it exists.

For more details about information/help creation, see create-help-file.

description

Description of the module for internal help purposes only. The description is not displayed in the interface.

ID's

visible only in god mode, see setup-panel-tab-expert.

unique ID

Current private ID for this control used to identify the object.

preset ID

Current private preset ID for this control used for presets.

recreate ID

If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.

repair ID s

Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.

Object Remote Address

absolute

Absolute remote address. see objects-address.

local

Local to the current patch remote address. see objects-address.

user addr

User defined remote address. see objects-address.
