Usine Objects

SetObject('patch.mixer.master-gain', 0.75);
Trace(GetObjectFloat('usine.master-synchro.tempo'));

References

get object values

set object values

object Flow Length

object various

findObject('x-1') returns the list (as a commaText) of all object containing the string x-1 inside the current workspace.

Presentation

Each object in Usine has an internal script name, generally made of the concatenation of its captions. For example the master-synchro tempo is identified by the internal name usine.master-synchro.tempo.

Then inside the script you can use the SetObject of GetObject functions to respectively set or get the value of the object.

Example : Random Tempo

// Random Tempo
procedure Process;
var tempo : float;
begin
  tempo := 30+100*random;
  SetObject('usine.master-synchro.tempo',tempo);
end;

Example : Trace the Tempo

// trace the tempo
procedure Process;
begin
  Trace(getObject('usine.master-synchro.tempo'));
end;

The list of all available global Usine-Objects is available in the third tab of the script-editor.

Accessing to controls inside a patch

We can access to controls (faders, switches, buttons, listboxes) inside a patch very simply. For example, in the following patch:

You can take a look on the second Tab of the script-editor to retrieve the names of available objects:

In our case the names are patch.fader-1 and patch.fader-2. The prefix is patch. followed by the caption of the control.

Example : link 2 faders

// Link 2 controls
PROCEDURE PROCESS();
var v : float;
BEGIN
    v := getObject('patch.fader-1');
    setObject('patch.fader-2',v);
END;

Accessing to any modules inside a patch

Let's take an example with a LFO module in a patch.

To have a direct access to modules settings inside a script, the first thing is to set a user-name for the module with [Alt+Click]. In this example we choose MYLFO.

give a name to the module

Now, inside the script-editor you can get the list of available objects in the script. As you can see the script engine can access to almost all parameters of the module without any wire.

Example : get the value of the LFO

//Link a LFO out to a Fader
PROCEDURE PROCESS();
var v : float;
BEGIN
    v := getObject('patch.mylfo.out');
    setObject('patch.fader-1',v);
END;

Accessing to objects inside a sub-patch

Controls inside sub-patches are accessible with the name of the sub-patch followed by the voice number.

patch.name-of-the-sub-patch.voice-number.name-of-the control

For example in the following patch:

You can check the list of available controls:

You can see that the name of the knob-1 is patch.mysubpatch.1.knob-1

//Link a fader to a sub-patch knob
PROCEDURE PROCESS();
var v : float;
BEGIN
    v := getObject('patch.fader-1');
    setObject('patch.mysubpatch.1.knob-1',v);
END;

Array objects

You can manipulate Array objects with the functions:

• GetObjectArray
• SetObjectArray
• GetObjectLength
• SetObjectLength

Example : copy an array to another array

In the simple following patch we want to copy the output of ARRAY1 to the input of ARRAY2.

PROCEDURE PROCESS();
var v : float;
var size,i : integer;
BEGIN
    size := getObjectLength('patch.array1.output');
    setObject('patch.array2.size',size);
    for i := 0 to size-1
    do begin
       v := getObjectArray('patch.array1.output',i);
       setObjectArray('patch.array2.input',i,v);
    end;
END;

MIDI objects

You can manipulate MIDI objects with the functions:

• GetObjectMIDI
• SetObjectMIDI
• GetObjectLength
• SetObjectLength

Example : copy an array to another array

In the simple following patch we want to copy the output of RANDOMMIDI to the input of SAMPLER.

PROCEDURE PROCESS();
var M : TMIDI;
var size,i : integer;
BEGIN
    size := getObjectLength('patch.randommidi.midi-out');
    setObjectLength('patch.sampler.midi-in',size);
    for i := 0 to size-1
    do begin
       M := getObjectMIDI('patch.randommidi.midi-out',i);
       setObjectMIDI('patch.sampler.midi-in',i,M);
    end;
END;

Color objects

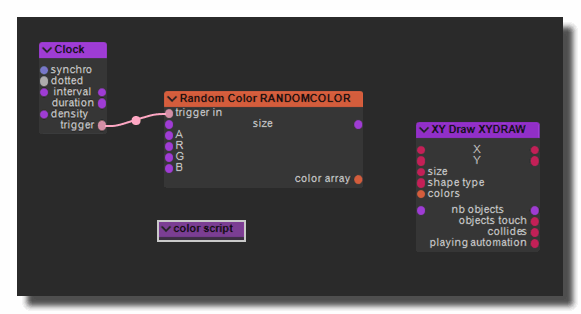

In the simple following patch we want to copy the output color array of RANDOMCOLOR to the input colors of XYDRAW.

PROCEDURE PROCESS();
var i : integer;
var col : TalphaColor;
BEGIN
  for i := 0 to  31
  do begin
    col :=  GetObjectArrayColor('patch.randomcolor.color-array',i);
    SetObjectArrayColor('patch.xydraw.colors',i,col);
  end;
END;

Access to everything

Inside a script you can access to any object anywhere in the workspace not only in the current patch. You have to remember that objects are identified by their captions. So if we have the rack 'myrack' which contains the patch 'mypatch' which contains 'fader 1' and 'fader 2'.

The global objects gives you the names of the Usine Objects to access to 'fader-1' or 'fader 2' anywhere in Usine.

The global names are:

• usine.workspace.myrack.mypatch.fader-1
• usine.workspace.myrack.mypatch.fader-2

FindObject is slow

The FindObject procedure is very slow and it's not necessary to execute it all the time, but only when something has changed in the workspace. For that you can use GetObjectsListHash which returns the hash string of the UsineObjects list. If the something has changed in Usine (rack,patch,modules,etc..) the hash string will be different.

// USE HASH
var FLastHash : string;
if GetObjectsListHash<> FLastHash
then begin
      FLastHash := GetObjectsListHash;
      s := findObject('myobjectname.out');
      ...
end;
