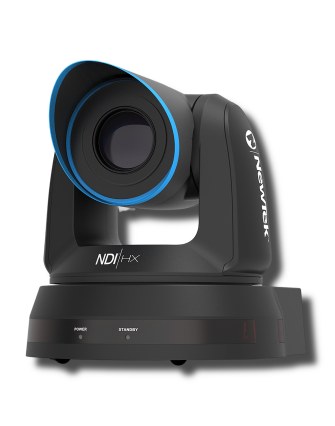

Video NDI Camera
NewTek NDI Camera video flow capture module. It's only a prototype and some features are missing (like PTZ inputs).
Settings
on
Enables the NDI camera module.
sources
List of available NDI cameras on the network. Select the camera you want to capture.
refresh list
Refreshes the list of available NDI cameras.
cameras list
List of all available NDI cameras as a comma-text.
out
Audio output flow(s).
audio buffer size
Size of the audio buffer. Adjust to avoid audio glitches on slow networks.
For a better audio quality, it's recommended to use the same Usine audio samplerate than the NDI frame samplerate (generally 48kHz).
video out
Video output flow(s).
width
Width in pixels of the video output frames.
height
Height in pixels of the video output frames.
fps
Video output frame rate in frames per second.
Common Settings
info
show manual
Opens the web browser to display information or help about the selected object, if it exists.
For more details about information/help creation, see create-help-file.
description
Description of the module for internal help purposes only. The description is not displayed in the interface.
ID's
visible only in god mode, see setup-panel-tab-expert.
unique ID
Current private ID for this control used to identify the object.
preset ID
Current private preset ID for this control used for presets.
recreate ID
If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.
repair ID s
Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.
Object Remote Address
absolute
Absolute remote address. see objects-address.
local
Local to the current patch remote address. see objects-address.
user addr
User defined remote address. see objects-address.
See also
version 7.0.250121
