Video Mix Combine

Combine

Combines two video flows with several ARGB pixel operation options.

Remember that pixels are defined as ARGB set so operations are done byte per byte. In all combinations, the Alpha channel (A) is ignored.

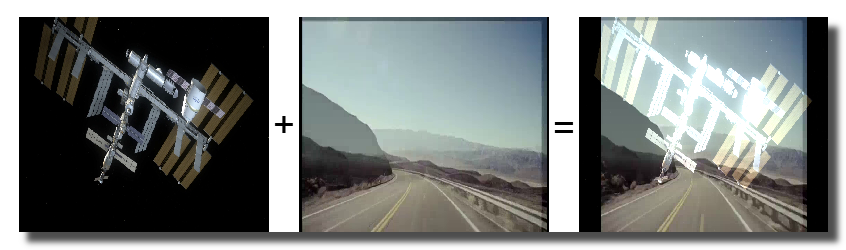

2 videos sources combined with ADD.

Settings

bypass

Bypasses the module processing when activated (ON).

  • OFF (0): Module processes normally
  • ON (1): Input passes directly to output without processing

video in

Video input flow(s).

video out

Video output flow(s).

process time

Total time used for the calculation of the module.

combine type

Combinations type:

  • ADD PixelOut = Pixel1 + Pixel2 (basic addition mode).
  • ADD 50/50 PixelOut = 50% x Pixel1 + 50% x Pixel2
  • AND PixelOut = Pixel1 AND Pixel2
  • SUB PixelOut = Pixel1 SUB Pixel2
  • OR PixelOut = Pixel1 OR Pixel2
  • XOR PixelOut = Pixel1 XOR Pixel2
  • DIFF if (Difference between pixel1 and Pixel 2 >= threshold) then PixelOut = white else PixelOut = black
  • replace black replaces Pixel1 by Pixel2 if Pixel1 is black according the tolerance
  • replace white replaces Pixel1 by Pixel2 if Pixel1 is white according the tolerance
  • replace red replaces Pixel1 by Pixel2 if Pixel1 is red according the tolerance
  • replace green replaces Pixel1 by Pixel2 if Pixel1 is green according the tolerance
  • replace blue replaces Pixel1 by Pixel2 if Pixel1 is blue according the tolerance
  • max takes the max values (R,G,B) of Pixel1 and Pixel2
  • min takes the min values (R,G,B) of Pixel1 and Pixel2
  • apply luminance computes the luminance of Pixel2 and applies and multiply Pixel2 by the value
  • distance gray computes the absolute value of the difference of gray intensity between Pixel1 and Pixel2.
  • distance gray contrasted computes the absolute value of the difference of gray intensity between Pixel1 and Pixel2. If the difference is lower than the tolerance it returns a black pixel, and a white pixel otherwise.

tolerance

Replacement tolerance used for the processing of:

  • replace black
  • replace white
  • replace red
  • replace green
  • replace blue
  • DIFF
  • distance gray contrasted
Common Settings

info

show manual

Opens the web browser to display information or help about the selected object, if it exists.

For more details about information/help creation, see create-help-file.

description

Description of the module for internal help purposes only. The description is not displayed in the interface.

ID's

visible only in god mode, see setup-panel-tab-expert.

unique ID

Current private ID for this control used to identify the object.

preset ID

Current private preset ID for this control used for presets.

recreate ID

If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.

repair ID s

Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.

Object Remote Address

absolute

Absolute remote address. see objects-address.

local

Local to the current patch remote address. see objects-address.

user addr

User defined remote address. see objects-address.
