Audio Oscillator Wavetable

Wavetable synthesis is based on periodic reproduction of an arbitrary, single-cycle waveform modulated according the pitch value.

Settings

on

Activates or deactivates the module.

out

Audio output flow(s).

frequency

Frequency of the oscillator.

amplitude

Amplitude of the signal.

smooth amplitude

Determines if the amplitude factor is smoothed to avoid audio clicks on abrupt changes.

type

Waveform type

  • square
  • saw
  • triangle
  • sin
  • array input
  • file

wavetable array

Array input to create your own wavetable.

Only if type=array input

wavetable file

Wavetable file path, as an audio file.

Only if type=file

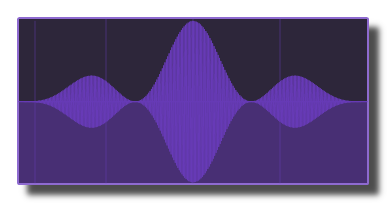

waveform

Waveform array to display (see panel-wave-display).

Common Settings

info

show manual

Opens the web browser to display information or help about the selected object, if it exists.

For more details about information/help creation, see create-help-file.

description

Description of the module for internal help purposes only. The description is not displayed in the interface.

ID's

visible only in god mode, see setup-panel-tab-expert.

unique ID

Current private ID for this control used to identify the object.

preset ID

Current private preset ID for this control used for presets.

recreate ID

If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.

repair ID s

Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.

Object Remote Address

absolute

Absolute remote address. see objects-address.

local

Local to the current patch remote address. see objects-address.

user addr

User defined remote address. see objects-address.

See also

version 7.0.250121
