Dialog Folder Open

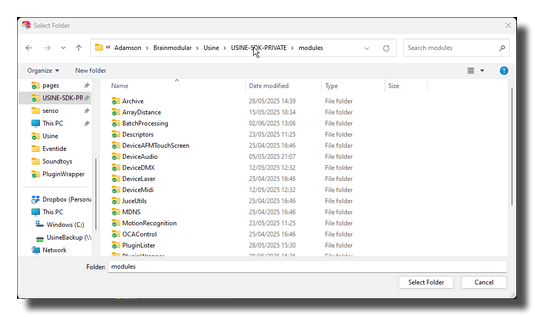

Opens the standard folder selection dialog to let the user choose a folder.

Settings

open dialog

Opens the dialog box.

folder

Full name of the selected folder.

root folder

Folder where the dialogs opens by default.

completed

Send 1 value when the open dialog operation is completed.

A flow-from-1-to-0 must be used to trigger something when the operation is completed or canceled.

canceled

Send 1 value when the open dialog operation has been canceled.

A flow-from-1-to-0 must be used to trigger something when the operation is completed or canceled.

reset folder name

Sets the folder name to a blank string.

Common Settings

info

show manual

Opens the web browser to display information or help about the selected object, if it exists.

For more details about information/help creation, see create-help-file.

description

Description of the module for internal help purposes only. The description is not displayed in the interface.

ID's

visible only in god mode, see setup-panel-tab-expert.

unique ID

Current private ID for this control used to identify the object.

preset ID

Current private preset ID for this control used for presets.

recreate ID

If you experience difficulties in Polyphonic mode, try to recreate new id(s) with this button.

repair ID s

Each Patch shared on the local network uses its own ID (identification number). If you experience issues of Patches that don't send information to the good target, this button will rebuild all these id's.

Object Remote Address

absolute

Absolute remote address. see objects-address.

local

Local to the current patch remote address. see objects-address.

user addr

User defined remote address. see objects-address.

See also

version 7.0.250121
